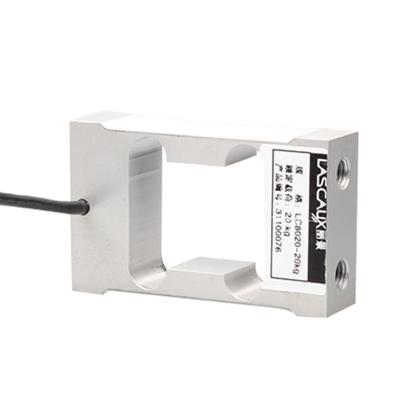

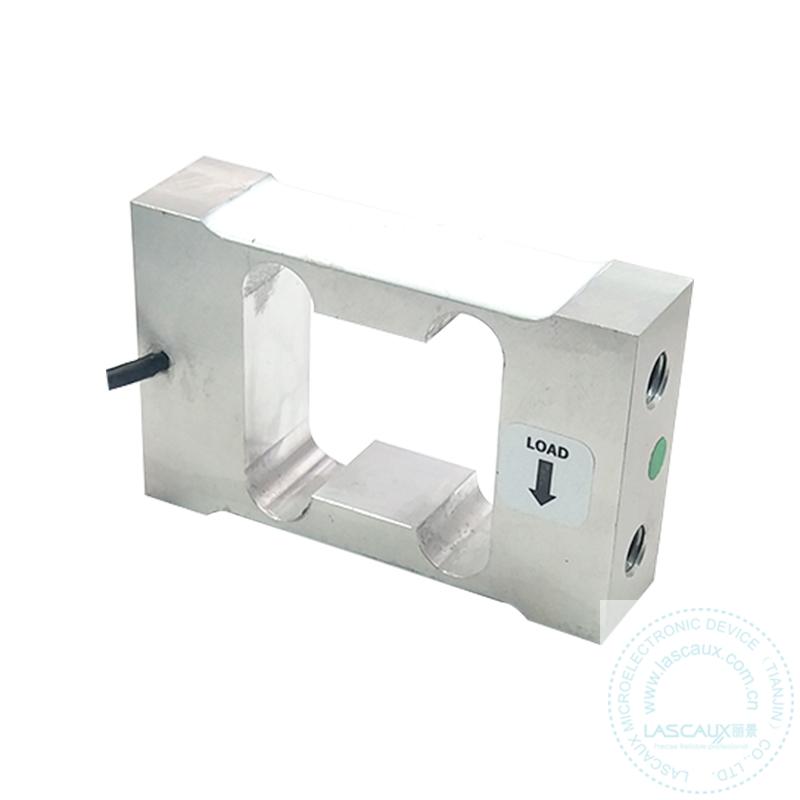

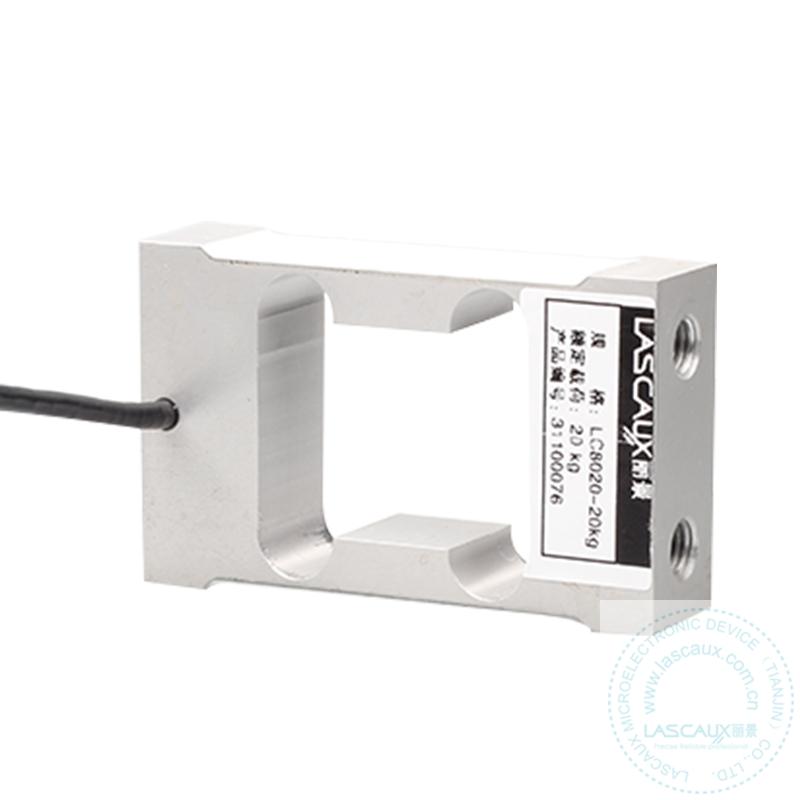

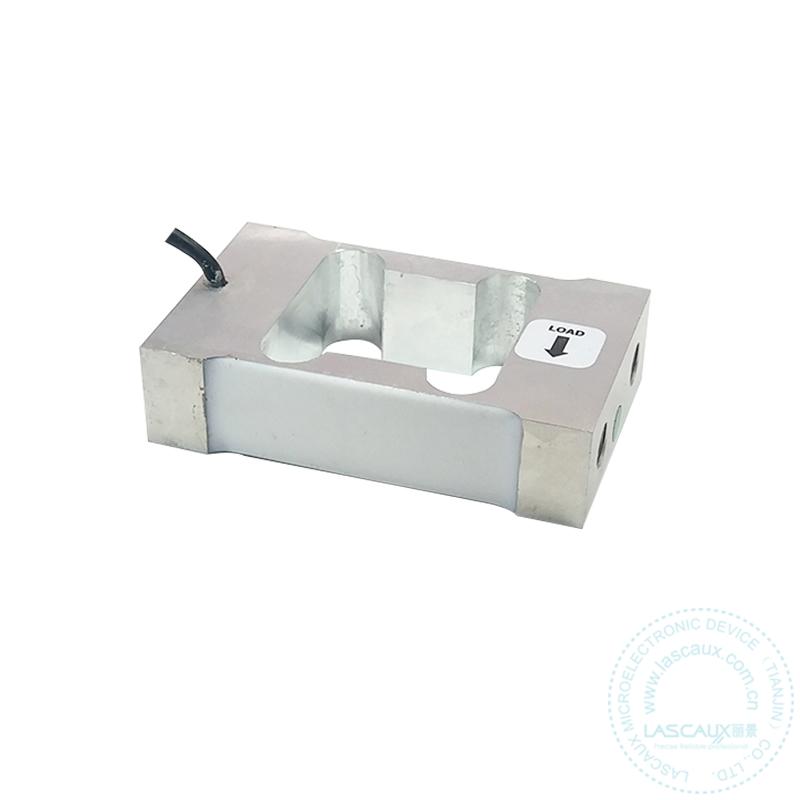

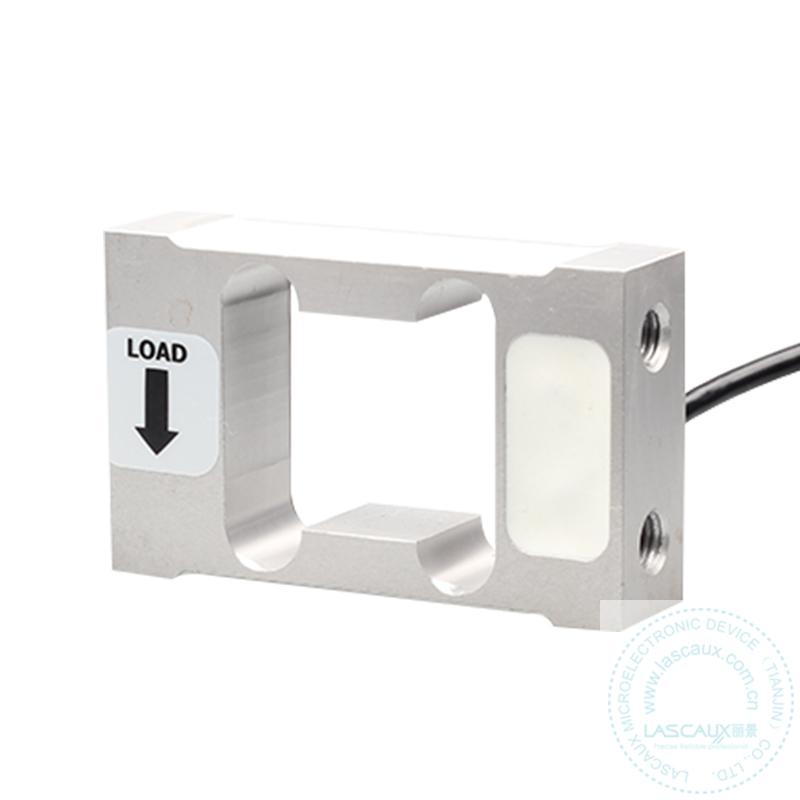

LC8020 Single Point Load Cell Description： Model: LC8020
Data sheet
Features: 1. Capacities (kg): 5 to 20 2. High comprehensive precision, high stability 3. Compact structure, easy to install 4. Small size with low profile 5. Anodized Aluminum Alloy 6. The four deviations has been adjusted 7. Recommended Platform size: 200mm*200mm
Applications: Be suitable for the fields of Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Low profile platform scales, Chemical, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.
Specifications:
|
| Product name : | LC8020 Single Point Load Cell |
| Product brand : | LIBIRINTH |
| Rated Load: | 5kg，10kg，20kg |
| Rated Output: | 2.0±0.2mV/V |
| Comprehensive Error: | 0.02%R.O. |
| Non-linearity: | 0.02%R.O. |
| Hysteresis: | 0.02%R.O. |
| Repeatability: | 0.02%R.O. |
| The lengh of the cable: | 0.4m |
| Input Impedance: | 410±10Ω |
| Output Impedance: | 350±5Ω |
| Recommended Excitation Voltage: | 5-10v |
| Tightening Torque: | 10N·m |
| Maximum Platfrom Size: | 200mm*200mm |
