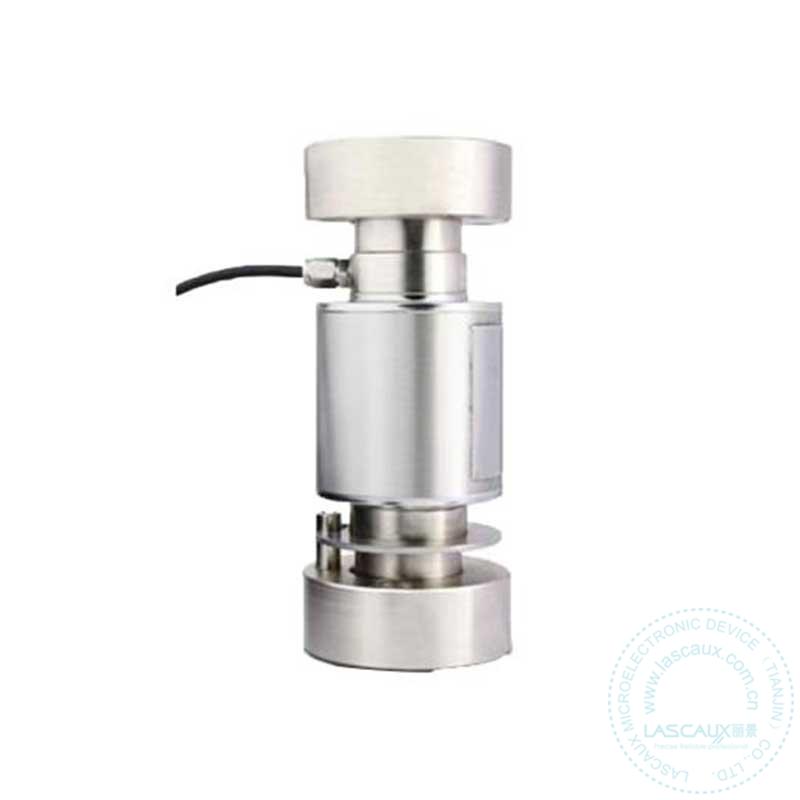

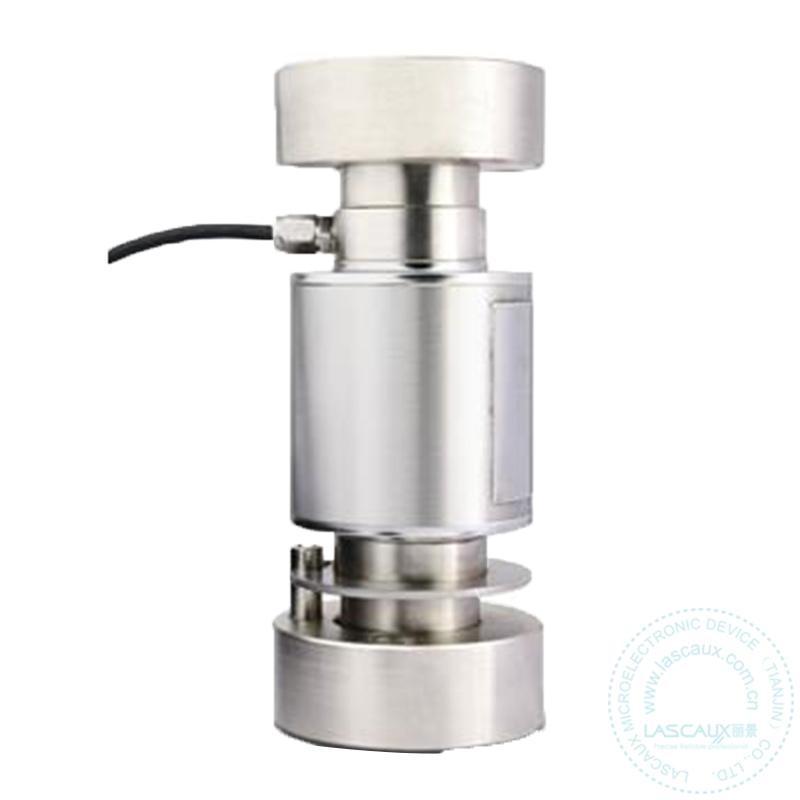

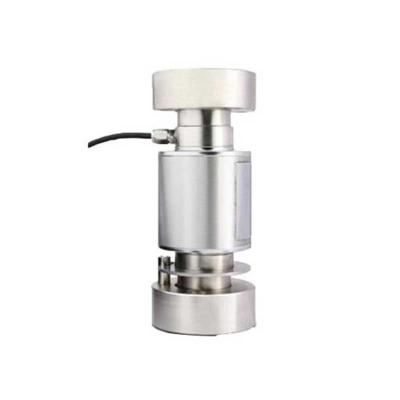

DINI ARGEO ANALOGUE COLUMN LOAD CELL "RCPT" SERIES

本店價：

??Consult customer service for a quote 0 have been sold|0 evaluation

BrandEnter the DINIARGEO Brand Pavilion

產(chǎn)品規(guī)格

30t

50t

DINI ARGEO ANALOGUE COLUMN LOAD CELL "RCPT" SERIES

ATEX Version

The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.

Wiring Code
Colour	Function
GREEN	OUTPUT +
WHITE	OUTPUT -
RED	INPUT +
BLACK	INPUT -

Column load cell for CE-M approved weighbridges, tanks, silos, etc.

CAPACITIES (kg): 20000, 30000, 50000.

OIML R60. C3 precision class.

Special alloy steel body with STAINLESS steel external casing; manufactured with laser solderings. IP68 protection.

MAIN FEATURES

C3 PRECISION CLASS.
SPECIAL ALLOY STEEL BODY with STAINLESS STEEL EXTERNAL CASING; MANUFACTURED WITH LASER SOLDERINGS.
OPTIMISED FOR PARALLEL CONNECTION.
IP68 PROTECTION RATING.
CAPACITY FROM 20000 TO 50000 kg.
SHIELDED 18m CONNECTION CABLE.
TEST CERTIFICATE AVAILABLE UPON REQUEST.
FITTED WITH SELF-ALIGNED ARTICULATED JOINTS, SELFCENTERING PLATES AND PROTECTION WASHER (version with cups).

TECHNICAL FEATURES

Minimum load cell verification interval: Vmin = EMax / 10.000
Maximum number of load cell divisions: nLC = 3000 (C3)
Sensitivity: 2mV/V +/- 0,1%
Temperature effect on full scale: 0,002% /°C
Temperature effect on zero: 0,002% /°C
Compensated Temperature Range: -10°C/+40°C
Operating Temperature Range: -30°C/+70°C
Creep error after 30 minutes: 0,02% F.S.
Excitation voltage from 5 to 15 VDC
Input Resistance: 700 ± 20 Ohm
Output Resistance: 703 ± 7 Ohm
Zero Balance: +/-1% F.S.
Insulation Resistance: >5000 MOhm
Safe Overload: >150% F.S.
Ultimate Overload: 250% F.S.
4-wire shielded cable, 5mm diameter.

Specification

Product name :	DINI ARGEO ANALOGUE COLUMN LOAD CELL "RCPT" SERIES
Product brand :	DINIARGEO
Warranty:	12個月
額定載荷:	30t,50t
精度等級:	C3
Output Type:	模擬量毫伏值電壓信號輸出：mV/V
額定輸出:	2mV/V±0.1%
Creep (30 min.):	0.02%F.S.
最小檢定分度值:	Vmin=EMax/10.000
最大檢定分度數(shù):	nLC=3000
最大激勵電壓:	5-15VDC
Input impedance:	700±20Ω
Output impedance:	703±7Ω
zero return:	±1%F.S.
Safe Overload:	150%F.S.
Ultimate overload:	250%F.S.
Degree of protection:	IP68
Elastic element material:	內(nèi)芯合金鋼,外部不銹鋼
The lengh of the cable:	14m
Cable Type:	4芯屏蔽電纜，直徑5mm
