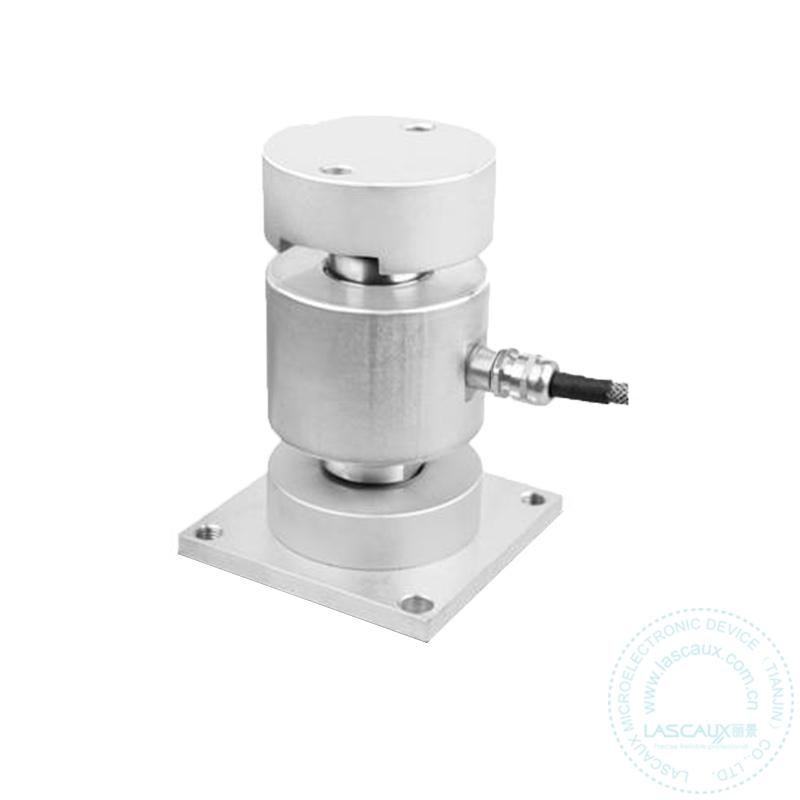

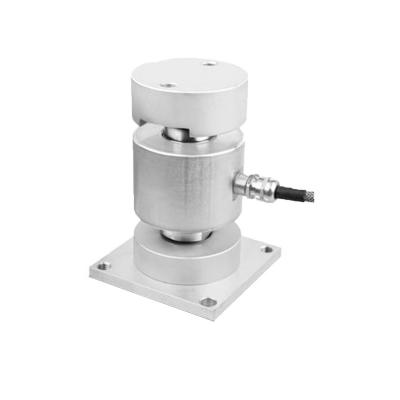

Dini Argeo RCD Compression Load Cells

本店價：

??Consult customer service for a quote 0 have been sold|0 evaluation

BrandEnter the DINIARGEO Brand Pavilion

產(chǎn)品規(guī)格

30t

DINI ARGEO DIGITAL COLUMN LOAD CELL, IN STAINLESS STEEL, “RCD” SERIES

WIRING CODE

RCD cell connections
Colour	Function
Input
WHITE	INPUT +
BROWN	INPUT -
Input signal
GREY	A+
PINK	B-
Output signal
GREEN	A+
YELLOW	B-

RCD LOAD CELL: INSTALLATION KIT

The KRCA kit allows a correct installation of the RCD load cells below the weighbridge plate.
The kit consists of an upper cup with anti-rotation system, a lower cup and a two-hole plate for easier and faster fixing. All components are made from nickel-plated steel.
Both cups are designed for optimal operation in conjunction with the cell’s self-centring spherical bases, allowing their proper oscillation and return to position.
The cups are also fitted with triple function integrated washers:
- they keep lubricating grease in its place.
- they simplify the proper positioning and levelling of the cell and support it during installation/maintenance.
- they protect the system by preventing dirt and water from accumulating on the bottom of the cup, thus maintaining the correct oscillation and mechanical compensation of the load cells over time.

Digital version of compression load cells, ideal for CE-M approved weighbridges, tanks, silos, etc. Manufactured in STAINLESS STEEL, with IP68 protection, 4000 divisions, fitted with “rodent proof” armoured cable.

CAPACITIES (kg): 30000/40000/50000.

OIML R60. C4 precision class.

Load cells with stainless steel body. Degree of protection IP68.

18m Armoured Rodent Resistant Cable, with standard Stainless Steel Armor.

Low Profile Height of only 130mm.

TECHNICAL FEATURES

METROLOGICAL:
Rated capacity (Cn): 30/40t
Combined error: ± 0,014 %Cn
Temperature effect on zero: 0,0016 %Cn/°C
Temperature effect on sensitivity: 0,0012 %Cn/°C
Creep error (30 min.): 0,021 %Cn

LEGAL METROLOGY OIML R60
Accuracy class: C4
Max. number of intervals (nmax): 4000e OIML
Minimum verification interval (vmin): 10000
Z= Emax/(2xDR): 4000

ELECTRICAL
Nominal range of excitation voltage: 10 - 16Vdc
Rated output: 200000d
Current consumption: 35mA
Conversion type: Delta-sigma
Internal resolution: 24 bit
Converter rate: max. 100 conv./sec.
RS485 interface communication rate: 4800/19200 bit/sec.
Protection against electrostatic discharge according to IEC 61326-1

GENERAL
Service temperature range: -20 ~ +60 °C
Compensated temperature range: -10 ~ +40 °C
Safe load limit: 150% Emax
Ultimate overload: 300% Emax
Protection degree IP68
Load cells with stainless steel body
6-core armoured cable, PVC sheath, 18m length.
Nickel plated steel cable gland.
Armoured Anti Rodent Cable with Stainless Steel Armour.
Self-centring spherical bases.
Equipped with anti-rotation system, to be combined with KRCA cups for proper operation.

Specification

Product name :	Dini Argeo RCD Compression Load Cells
Product brand :	DINIARGEO
Warranty:	12個月
額定載荷:	30t
精度等級:	C4
Output Type:	模擬量毫伏值電壓信號輸出：mV/V
綜合誤差:	±0.017%F.S
Safe Overload:	150%F.S.
Degree of protection:	IP68
Elastic element material:	不銹鋼
Cable Type:	6芯屏蔽電纜
Full scale resolution:	200000d
Power Supply:	7.5-16VDC
Conversion chip:	24位
Communication:	RS485
