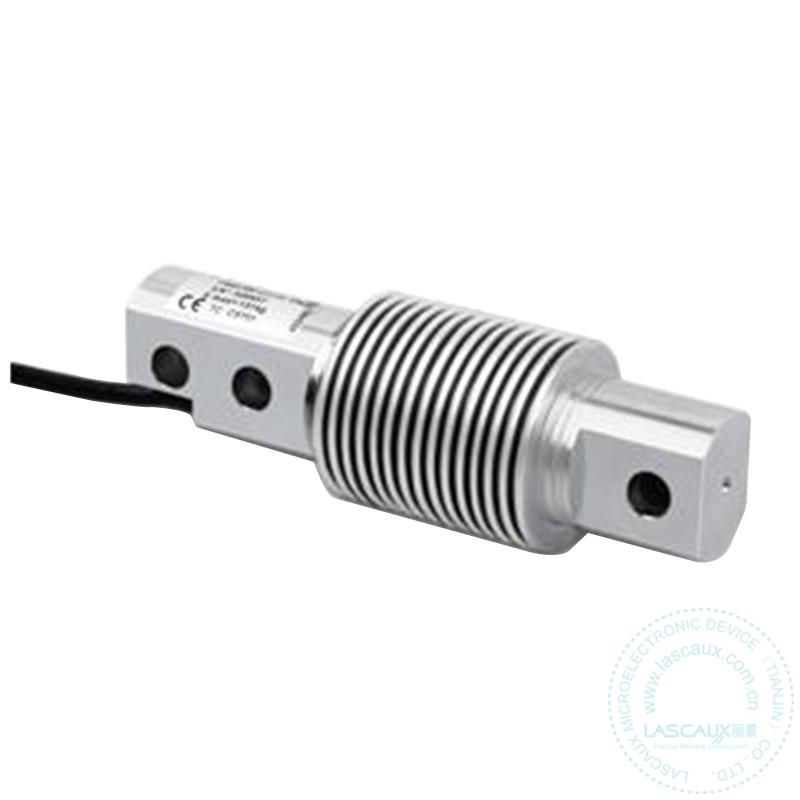

FXC SERIES BENDING BEAM LOAD CELLS
|
|||||||||||||||||||||||||||||||||||||||||
| Product name : | Dini Argeo FXC SERIES BENDING BEAM LOAD CELLS |
| Product brand : | DINIARGEO |
| Warranty: | 12個月 |
| 額定載荷: | 10kg,20kg,50kg,100kg,200kg,300kg,500kg |
| 精度等級: | C3 |
| Output Type: | 模擬量毫伏值電壓信號輸出：mV/V |
| 額定輸出: | 2mV/V±0.1% |
| 綜合誤差: | ±0.017%F.S |
| 非重復性: | 0.015%F.S. |
| Creep (30 min.): | 0.016%F.S. |
| 最小檢定分度值: | Vmin=EMax/10.000 |
| 最大檢定分度數(shù): | nLC=3000 |
| 最大激勵電壓: | 15VDC |
| Input impedance: | 385±20Ω |
| Output impedance: | 350±5Ω |
| Safe Overload: | 200%F.S. |
| Ultimate overload: | 300%F.S. |
| Degree of protection: | IP68 |
| Elastic element material: | 不銹鋼 |
| The lengh of the cable: | 3m |
| Cable Type: | 4芯屏蔽電纜，直徑4mm |
Dini Argeo FXC SERIES BENDING BEAM LOAD CELLS
