High accuracy for virtually any application, through to the legal-for-trade weighing system
Type HLC Load Cells: Robust Weighing up to Accuracy Class C6HLC load cells are perfectly suited for use with any type of tank, batching or platform scales as well as for level monitoring - and are used by market leaders. Their 6-wire configuration allows for precise measurement results up to accuracy class C6 per OIML R60. The particularly robust HLC load cells are available in standard dimensions and can be easily integrated and quickly adapted to the required maximum capacities ranging from 110 kg to 10 tons. In addition, versions with IP69K degree of protection and explosion proof IECEx-ATEX designs are available.
Precise
High accuracy for virtually any application, through to the legal-for-trade weighing system Robust
Robust and precise also in hash environments thanks to ruggedized design Flexible
Variable and individual use due to standard dimensions and different maximum capacities |

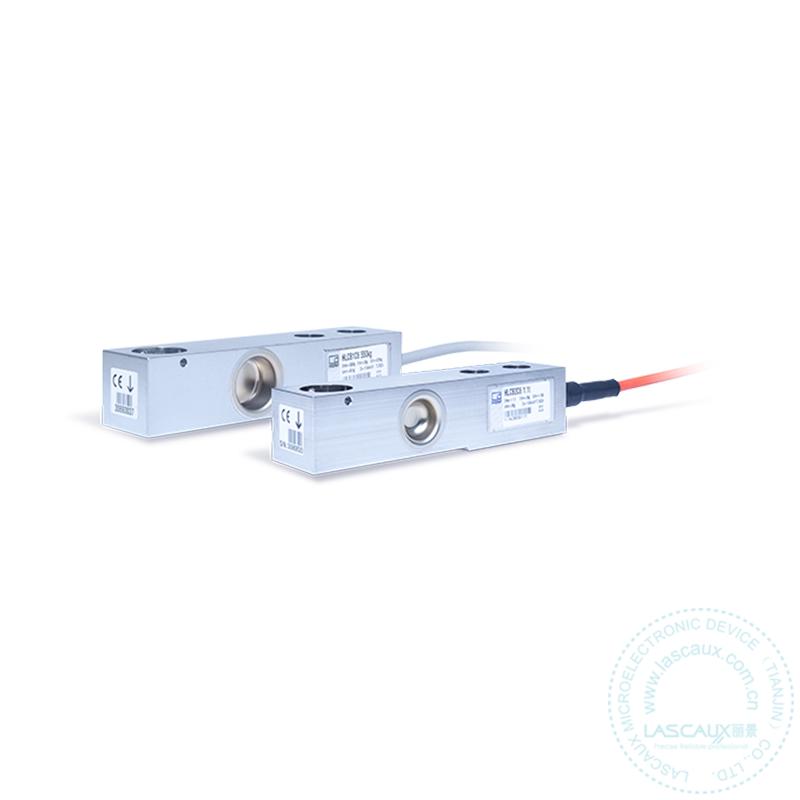

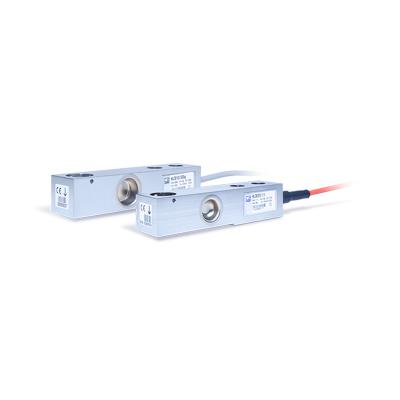

| Product name : | HBM HLC Ended Shear Beam Load Cells |
| Product brand : | HBM |
| Warranty: | 12個(gè)月 |
| 額定載荷: | 110kg,220kg,550kg,1.1t,1.76t,2.2t,4.4t,10t |
| 精度等級(jí): | D1,C3,C4,C6 |
| Output Type: | 模擬量毫伏值電壓信號(hào)輸出：mV/V |
| Rated Output: | 1.94(10t=2.00mV/V) |
| Degree of protection: | IP68 |
| Material: | 不銹鋼 |
| Non-linearity: | ±0.0170%R.O. |
| repeatability: | ±0.0166%R.O. |
| Creep(30 min.): | ±0.0166%R.O. |
| Output impedace: | 350~480Ω |
| Input impedace: | 350±2Ω/350±0.12Ω |
| Recommended excitation voltage: | 5VDC |
| Normal excitation voltage range: | 0.5-15VDC/5-10VDC |
| Safe overload: | 150%R.O. |
| Ultimate overload: | 300%R.O. |
