PSD
Datasheet:
Features:
Applications
DescriptionA low profile design that makes PSD the most suitable application concerning critical height for safety reasons. The shear web design provides excellent performance even when side forces are inevitable in normal operations. The typical example for side force resistance is the application in motor truck scales. PSD is constructed of alloy steel and is fully potted with special chemical compounds to IP67 to protect the cell from water and moisture attack.
|
| Product name : | CELTRON PSD-SJTH Precision Shear Web Disk Load Cell |
| Product brand : | CELTRON |
| Warranty: | 12個(gè)月 |
| 額定載荷: | 0.5t,1t,2t,5t,10t,25t,30t |
| 輸出類型: | 模擬量毫伏值電壓信號(hào)輸出：mV/V |
| 額定輸出: | 3.0±0.25mV/V |
| 非線性: | 0.05%R.O. |
| 零點(diǎn)回復(fù)（20分鐘): | 0.03%R.O. |
| Hysteresis: | 0.05%R.O. |
| Repeatability: | 0.02%R.O. |
| Creep (20 min.): | 0.03%R.O. |
| Safe overload: | 150%R.O. |
| Ultimate overload: | 300%R.O. |
| Recommended excition voltage: | 10VDC |
| Maximum excitation: | 15VDC |
| Input impedance: | 385±5 |
| Output impedance: | 350±3 |
| Insulation resistance: | >5000MΩ |
| Material: | 合金鋼鍍鎳 |
| Degree of protection: | IP67 |
| The lengh of the cable: | 15m |

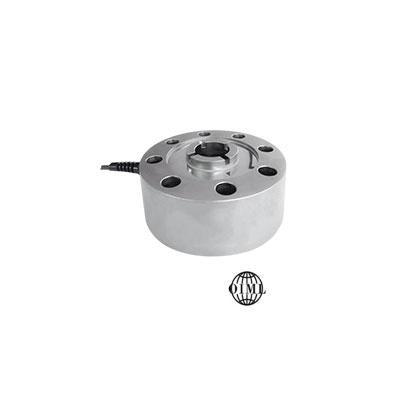

CELTRON PSD-SJTH Precision Shear Web Disk Load Cell
