LCD
Datasheet:LCD Datasheet
Features:
Applications
DescriptionThe low profile compression disk is designed as the ultimate solution for some difficult applications with critical height for safety reasons. The shear web design provides excellent performance even when the side force inevitably exists in normal operations. The typical example for side force resistance is the applications in motor truck scales. LCD is constructed of alloy steel and fully potted with special chemical compounds to IP67 providing excellent protection against moisture and humidity.
|
| Product name : | CELTRON LCD Low Profile Compression Disk Load Cell |
| Product brand : | CELTRON |
| Warranty: | 12個月 |
| 額定載荷: | 5klb,10klb,25klb,50klb,100klb |
| 輸出類型: | 模擬量毫伏值電壓信號輸出：mV/V |
| 額定輸出: | 4.0mV/V |
| 非線性: | 0.05%R.O. |
| 零點回復(fù)（20分鐘): | 0.03%R.O. |
| Hysteresis: | 0.05%R.O. |
| Repeatability: | 0.02%R.O. |
| Creep (20 min.): | 0.03%R.O. |
| Safe overload: | 150%R.O. |
| Ultimate overload: | 300%R.O. |
| Recommended excition voltage: | 10VDC |
| Maximum excitation: | 15VDC |
| Input impedance: | 385±5(100klb:770±10Ω) |
| Output impedance: | 385±3(100klb:770±5Ω) |
| Insulation resistance: | >5000MΩ |
| Material: | 合金鋼鍍鎳 |
| Degree of protection: | IP67 |
| The lengh of the cable: | 15m |

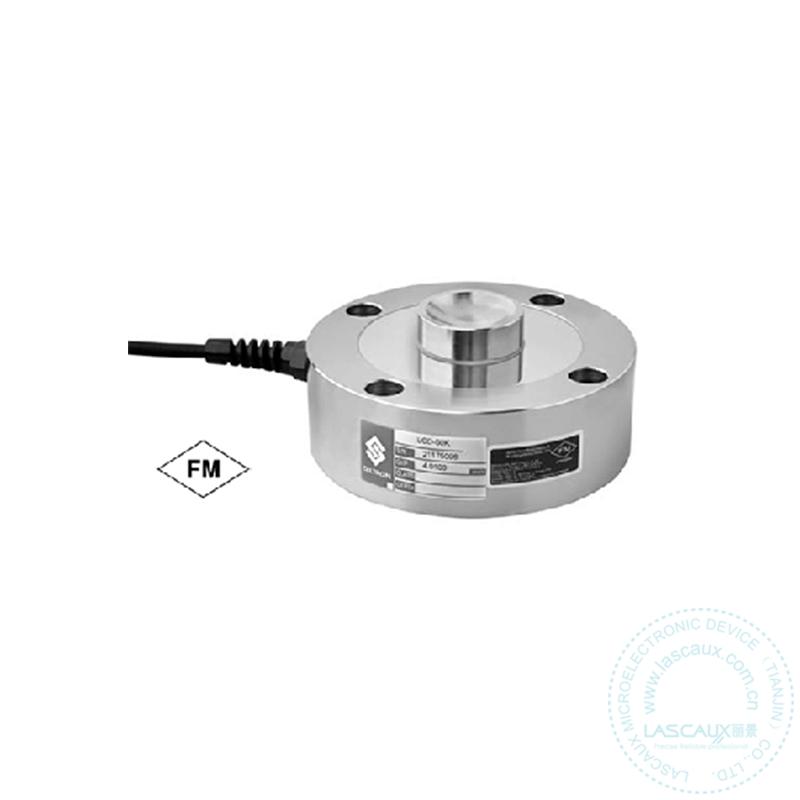

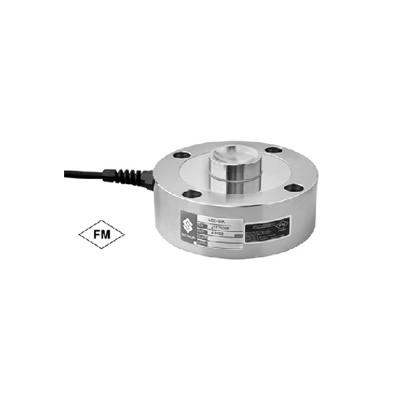

CELTRON LCD Low Profile Compression Disk Load Cell
