MBB
Datasheet:MBB DatasheetFeatures:
Applications
DescriptionMBB is designed for low profile platform scales and tank scales in low capacities. It is constructed of high alloy tool steel which offers superior performance in creep characteristics and shock load capabilities over standard aluminum units. MBB is fully potted and sealed with special chemical compounds to IP66 providing excellent protection against moisture and humidity. |
| Product name : | CELTRON MBB Miniature Bending Beam Load Cell |
| Product brand : | CELTRON |
| Warranty: | 12個月 |
| 額定載荷: | 50lb,100lb,150lb,250lb |
| 輸出類型: | 模擬量毫伏值電壓信號輸出：mV/V |
| 額定輸出: | 3.0mV/V |
| 非線性: | 0.03%R.O. |
| Hysteresis: | 0.03%R.O. |
| Repeatability: | 0.02%R.O. |
| Creep (20 min.): | 0.03%R.O. |
| Safe overload: | 150%R.O. |
| Ultimate overload: | 300%R.O. |
| Recommended excition voltage: | 10VDC |
| Maximum excitation: | 15VDC |
| Input impedance: | 385±5Ω |
| Output impedance: | 350±3Ω |
| Insulation resistance: | >5000MΩ |
| Material: | 合金鋼 |
| Degree of protection: | IP66 |
| The lengh of the cable: | 1.5m |

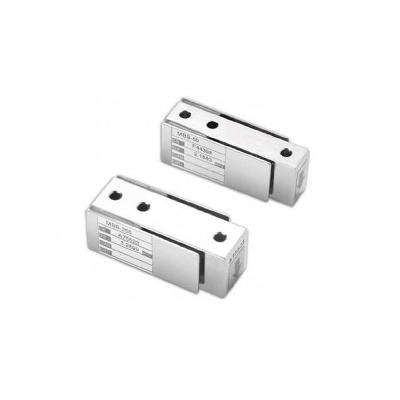

CELTRON MBB Miniature Bending Beam Load Cell
