SQB
Datasheet:SQB DatasheetFeatures:
Applications

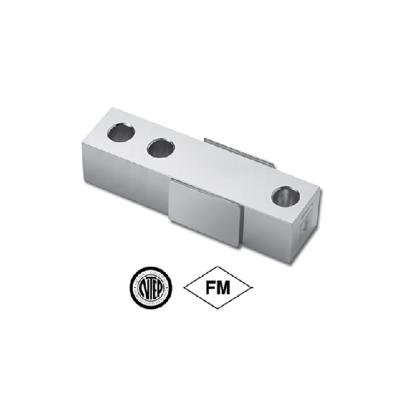

DescriptionSQB is a single-ended shear beam load cell designed for multiple cell applications such as low profile platform or small tank scales when used with proper mounting accessories. It is insensitive to side loading and capable of reversed loading. SQB and SQB-F are constructed of alloy steel and fully potted with special chemical compounds to IP67 to protect the cell from water and moisture damage. |
| Product name : | CELTRON SQB single-ended beam load cell |
| Product brand : | CELTRON |
| Warranty: | 12個月 |
| 額定載荷: | 250kg,500kg,1000kg,1500kg,2000kg,2500kg,5000kg |
| 輸出類型: | 模擬量毫伏值電壓信號輸出：mV/V |
| 額定輸出: | 3.0mV/V |
| 非線性: | 0.03%R.O. |
| Hysteresis: | 0.03%R.O. |
| Repeatability: | 0.02%R.O. |
| Creep (20 min.): | 0.03%R.O. |
| Safe overload: | 150%R.O. |
| Ultimate overload: | 300%R.O. |
| Recommended excition voltage: | 10VDC |
| Maximum excitation: | 15VDC |
| Input impedance: | 385±5Ω |
| Output impedance: | 350±3Ω |
| Insulation resistance: | >5000MΩ |
| Material: | 合金鋼或不銹鋼 |
| Degree of protection: | IP67 |
| The lengh of the cable: | 6.1m |
