LPS
Datasheet:LPS DatasheetFeatures:
Applications
DescriptionLPS is designed for electronic scales and platform scales where only one load cell can be used and low profile is required. It is the lightest model of Celtron single-point load cell family. The design is most suitable for mass production operations. LPS is constructed of anodized aluminum and is fully potted IP66 levels, providing excellent protection against moisture ingression. |
| Product name : | CELTRON LPS Low Profile Single-Point Load Cell |
| Product brand : | CELTRON |
| Warranty: | 12個(gè)月 |
| 額定載荷: | 0.6kg,1kg,2kg,3kg,6kg,10kg,15kg,20kg,30kg,35kg,60kg,100kg,200kg |
| 輸出類型: | 模擬量毫伏值電壓信號(hào)輸出：mV/V |
| 額定輸出: | 1.0mV/V(1kg以下)/2.0mV/V |
| 非線性: | 0.03%R.O. |
| Hysteresis: | 0.03%R.O. |
| Repeatability: | 0.02%R.O. |
| Creep (20 min.): | 0.03%R.O. |
| Safe overload: | 150%R.O |
| Ultimate overload: | 200%R.O |
| Recommended excition voltage: | 10VDC |
| Maximum excitation: | 15VDC |
| Input impedance: | 410±10Ω |
| Output impedance: | 350±3Ω |
| Insulation resistance: | >5000MΩ |
| Material: | 陽(yáng)極氧化鋁 |
| Degree of protection: | IP66 |
| The lengh of the cable: | 30cm(0.6kg-3kg),45cm(6kg-35kg),2m(60kg-200kg) |

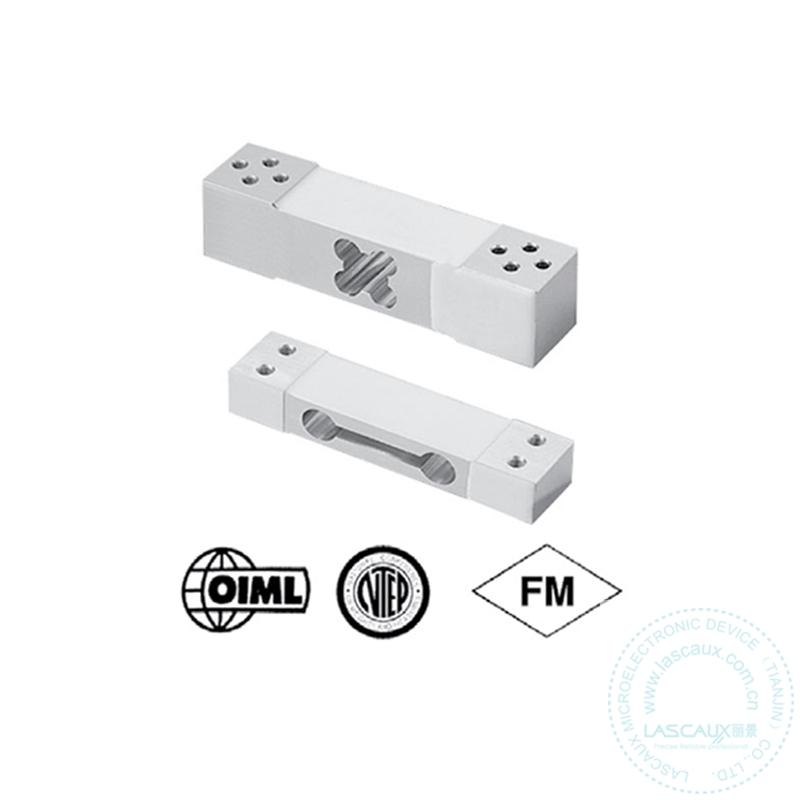

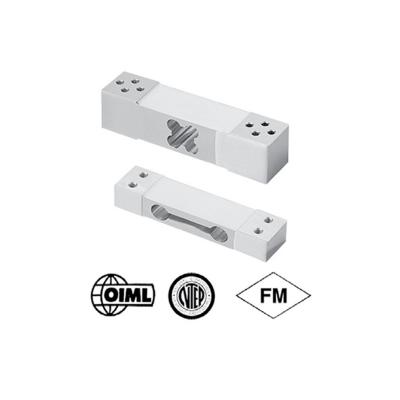

CELTRON LPS Low Profile Single-Point Load Cell
