STC
Datasheet:STC DatasheetFeatures:
Applications

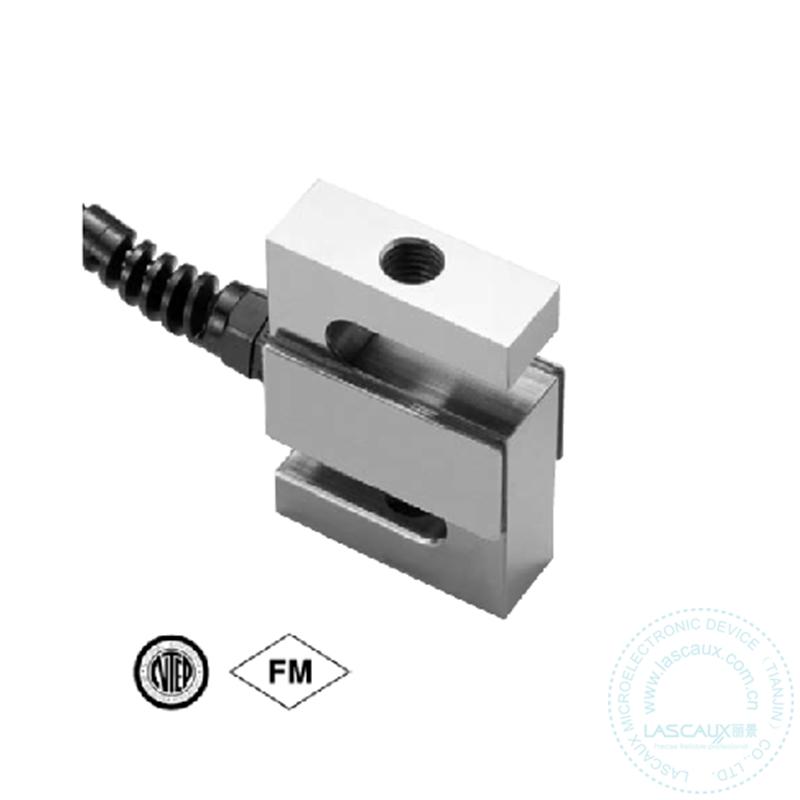

DescriptionThe S-type load cell, as the name indicates, can be easily identified by S-shaped body. They can be loaded either in tension or compression, and used for single or multiple-cell application if the output is rationalized. STC is made of Aluminum, Alloy Steel or Stainless Steel,sealed to IP67 providing excellent protection against moisture and humidity. |
| Product name : | CELTRON STC S-Type Load Cell |
| Product brand : | CELTRON |
| Warranty: | 12個(gè)月 |
| 額定載荷: | 5kg,10kg,20kg,25kg,50kg,75kg,100kg,250kg,500kg,750kg,1000kg,1500kg,2000kg,2500kg,5000kg |
| 輸出類型: | 模擬量毫伏值電壓信號(hào)輸出：mV/V |
| 額定輸出: | 2.0mV/V(鋁),3.0mV/V(鋼) |
| 非線性: | 0.02%R.O. |
| Hysteresis: | 0.02%R.O. |
| Repeatability: | 0.02%R.O. |
| Creep (20 min.): | 0.02%R.O. |
| Safe overload: | 150%R.O. |
| Ultimate overload: | 200(鋁)/300(鋼) |
| Recommended excition voltage: | 10VDC |
| Maximum excitation: | 15VDC |
| Input impedance: | 410±5Ω(鋁)/385±5Ω(鋼) |
| Output impedance: | 350±3Ω |
| Insulation resistance: | >5000MΩ |
| Material: | 鋁或合金鋼鍍鎳 |
| Degree of protection: | IP67 |
| The lengh of the cable: | 6.1m |
