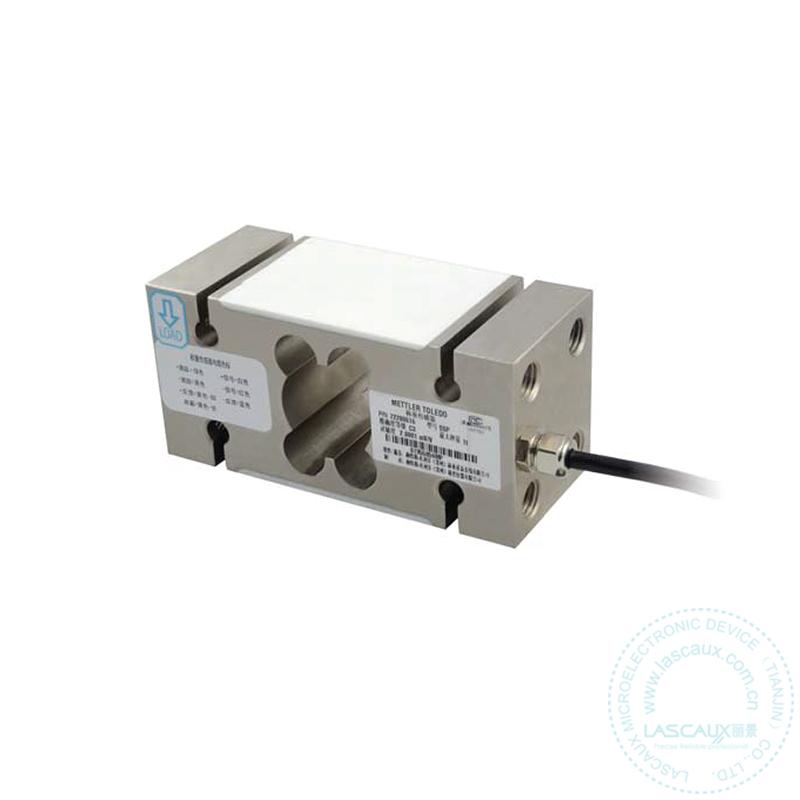

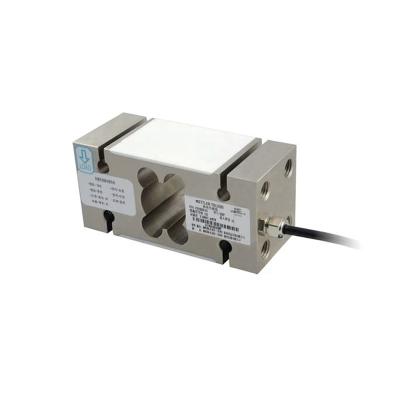

| Product name : | IL Single Point Load Cell |
| Product brand : | METTLER TOLEDO |
| Warranty: | 12個(gè)月 |
| 額定載荷: | 150kg,250kg,500kg,1000kg,2000kg |
| 輸出類(lèi)型: | 模擬量毫伏值電壓信號(hào)輸出：mV/V |
| 重復(fù)性誤差: | ≤0.01%R.C. |
| 額定輸出: | 2±0.2mV/V |
| 非線性: | ≤0.02%R.C. |
| Hysteresis: | ≤0.02%R.C. |
| Input impedance: | 380±15 |
| Output impedance: | 350±1Ω |
| Insulation resistance: | ≥5000(50V DC) |
| Rate Excitation: | 5-15v |
| Maximum excitation: | 20v |
| Safe Overload: | 150%R.C. |
| Ultimate overload: | 300%R.C. |
| Protection class: | IP67 |
| The lengh of the cable: | 2.5m |
| Maximum platform size: | 800mm*800mm(150kg-1t),1000mm*1000mm(2t) |
| Tightening torque: | 98N·m(150kg-1000kg),196N·m(2000kg) |
| Material: | 合金鋼 |
