Information proname ：XK3190-A23P

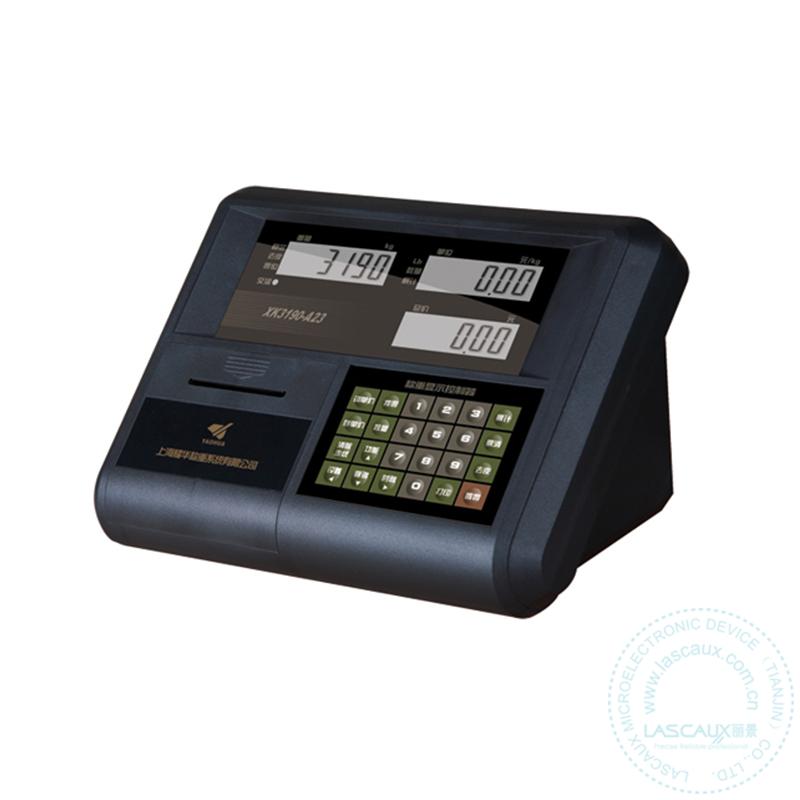

Introduction Weighing indicator Xk3190-A23P is a price-computing indicator with three LCD display windows and built-in printer. It is able to apply in static weighing system equipped with 1-4 load cell such as electronic platform scale, electronic floor scale etc.
Standard function
◆Standard price-computing function
Technical parameter
◆Accuracy class: III |
| Product name : | Xk3190-A23P Weighing Indicator |
| Product brand : | LIBIRINTH |
| Warranty: | 12個月 |
| Power supplies: | 交流電源：AC220V；50HZ;直流電源：內置6V/5AH蓄電池 |
| 輸入信號范圍: | -19mV～19mV |
| 傳感器輸入電壓: | DC5V |
| 顯示屏: | 單窗口2英寸特制高亮LED大顯示 |
| 連接傳感器個數: | 可接1-4只350Ω |
| 轉換速度 : | 10次/秒 |
| 傳輸方式: | 串行輸出，電流環信號 |
| 波特率: | 600/1200/2400/4800/9600可選 |
| Housing material: | 塑料 |
| Accuracy Class: | 3級 |
| Non-linearity: | ≤0.0015% |
| Operating temperatures: | -10 °C～40 °C |
